Relink Sleeve Patch/Badge Tutorial by Hawke

Relink Sleeve Patch/Badge Tutorial by Hawke

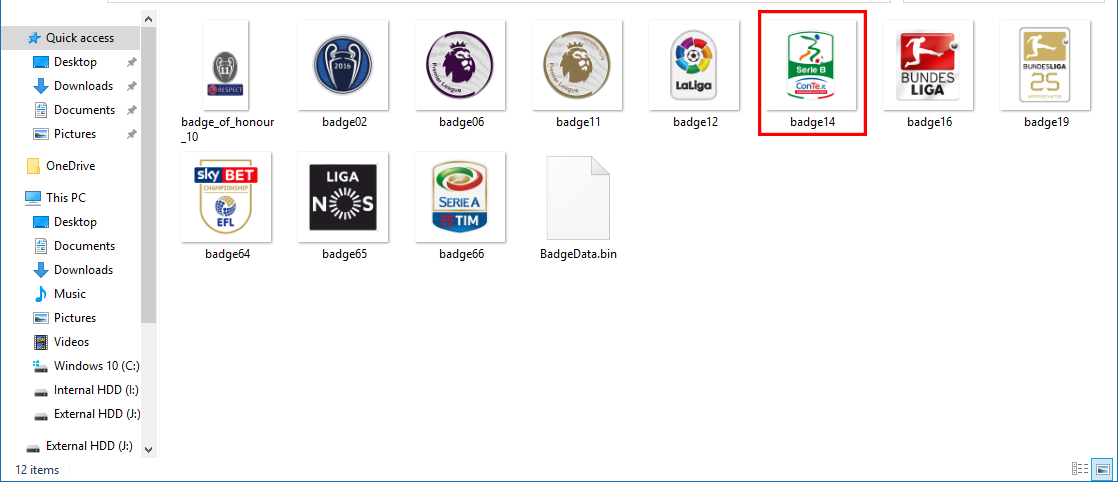

Hi,... Some people have been asking for this tutorial so I'll show you quickly Serie B...first make your badge in Photoshop... 128x128 is the default size but you can make it 256x256 or 512x512 for better quality, now save your badge as DDS DTX5 All you need to go to "dt_35_win\common\character0\model\character\uniform\badge" & find a free will see by default "badge06/11/12, etc are free slots (blank DDS) but if you are using a patch these slots may be used by the patch makers so you will need to find the badge folder from the patch & check which slots are free. I use PTE patch so I found that "badge14" was free so I named the badge I used "" and placed it in the badge folder...see image below.

Note: Serie B Badge Credit = -cRoNoS-

Now we need to license Serie B so you need to unzlib Competition.bin (remember if you are using a patch you will need to use the Competition.bin from the patch) & then open it with your Hex scroll down to "ITALY_D2_LEAGUE" & change the byte before the league name from 00 to 01..see image save.

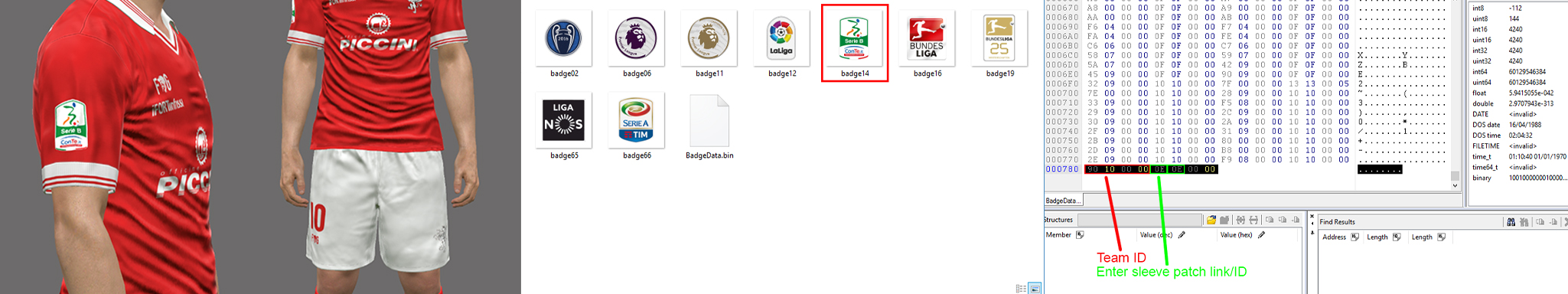

Now we need to add Serie B teams to BadgeData.bin open BadgeData.bin from "dt_35_win\common\character0\model\character\uniform\badge" or from your patch badge folder with your Hex editor...scroll to the end and add 8 bytes...the first 4 bites = team this case Perugia...ID = 4240 so in hex the 5th & 6th byte add the link to your badge so badge14 = 14 in hex = 0E ...see image below.....Now save...NOTE: Remember you must do this for ALL Serie B teams & each team uses 8 bytes.NOTE:2 Konami's logic now says that the 5th byte determines that the patch will be used in home matches & the 6th byte determines that the patch will be used in away matches..(wow makes no sense at all ) always point 5th & 6th byte to the sleeve patch ID.

Now rebuild your .cpk files..Start your game and go to edit mode ..Competitions/Italy/Serie B/Detailed Settings/Badge & set to "Type 1"...remember Type 1 = Right Sleeve/Type 2 = Left Sleeve & Type 3 = Both Sleeves.

Perugia now uses the re-linked badge from the badge folder.
